Rubber punching

Rubber punching is suitable for the production of robust sealing and protective solutions with high dimensional stability. Krückemeyer manufactures rubber punching parts individually – also combined with adhesive coatings.

Manufacturing capabilities Send inquiry

Gummi stanzen individuell

Technique	Punching using a band-steel cutting tool
Working width	up to 600 mm
Thickness	material-dependent
Tolerances	±0.5 mm (material-dependent)

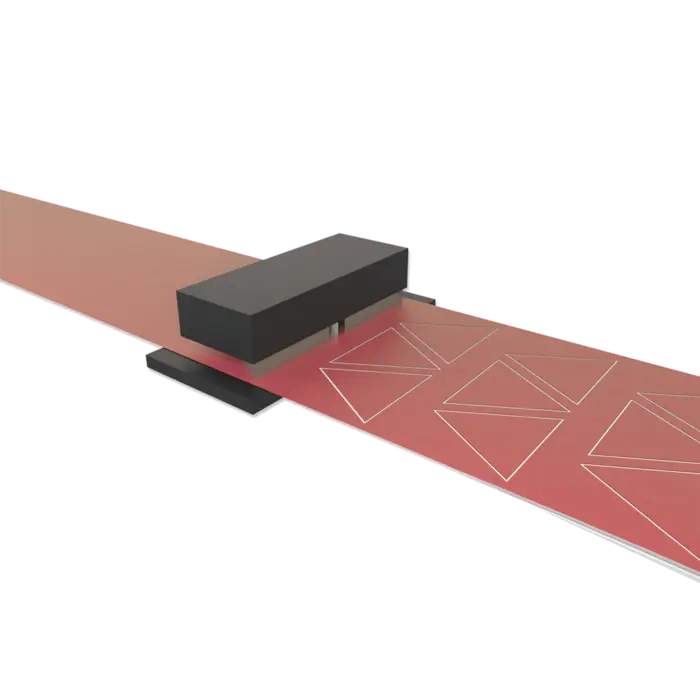

Using ram punching, we shape rubber materials into the desired form. Whether this is possible depends on the material thickness and the respective Shore hardness.

Technique<\/strong><\/td>	Continuous punching using a punching-cylinder tool<\/?td><\/tr>
Working width<\/strong><\/td>	up to 250 mm<\/?td><\/tr>
Thickness<\/strong><\/td>	up to 2 mm (material-dependent)<\/?td><\/tr>
Tolerances<\/strong><\/td>

Rubber	Custom materials
Cellular rubber	EPDM

Please note: Due to material thickness and, in particular, hardness, not all rubber and EPDM qualities can be die-cut. Depending on the application, laser cutting can be a suitable alternative here.

Adhesive points	Custom diameters
Adhesive tapes	Custom dimensions
Custom adhesive die-cut parts	All 2D shapes
Adhesive pads & sheets	Custom dimensions
Carrier media	Roll stock & sheet stock \| individual parts

We primarily process the materials in a self-adhesive form. Depending on the material and the intended processing, non-adhesive punching may also be possible – this cannot be guaranteed.
