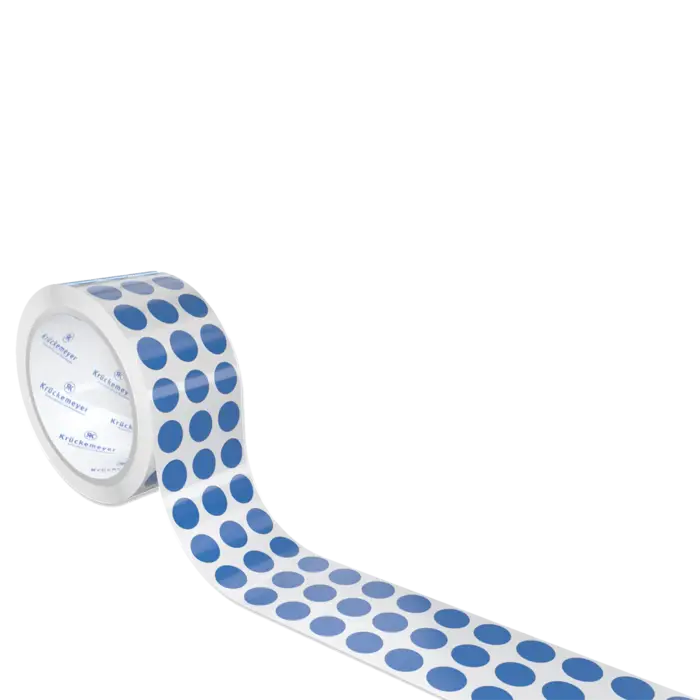

Round Punching

Round punching refers to the production of round stamped parts in variable sizes – ideal for covers, protective films, or adhesive applications. Krückemeyer offers round cuts as individual parts or on a roll for manual and automated processes.

Manufacturing capabilities Send inquiry

Rund stanzen individuell

Sizes	Individual diameters
Arrangement	Single- & multi-web versions
Dimensions	Delicate (3 mm to 580 mm)

We punch discs from all materials that can be cut cleanly and wound— in freely selectable diameters. For efficient mass production, the discs are arranged in several parallel lanes side by side, depending on size.

Formats<\/strong><\/td>	Custom 2D shapes<\/td><\/tr>
Feature<\/strong><\/td>	Removal of punched material<\/td><\/tr>
Kiss-cut<\/strong><\/td>

Technique<\/td>	Continuous punching using a punch-cylinder tool<\/td><\/tr>
Working width<\/td>	up to 250 mm<\/td><\/tr>
Thickness<\/td>	up to 2 mm<\/td><\/tr>
Tolerances<\/td>

Technology	Punching using a band-steel cutting tool
Working width	up to 600 mm
Thickness	up to 10 mm
Tolerances	±0.5 mm

Technical Films	Electronics \| Thermal \| and more.
Protection Films	Surface protection \| Product protection
Adhesive Tapes	Single- & double-sided
Foams	PE \| PU \| EPDM
Custom Materials	All cut- & wrapable materials
Non-Adhesive	Materials without adhesive coating

We process all materials that can be cleanly cut and wound—preferably in self-adhesive form, depending on the material also non-adhesive.

Adhesive dots \| self-adhesive discs	Custom diameters
Non-adhesive rounds	Custom diameters
Roll stock	Custom dimensions
Sheet stock	Custom dimensions
Inner cut-outs	Rings + other geometries
