Laser Cutting of Adhesive Tape

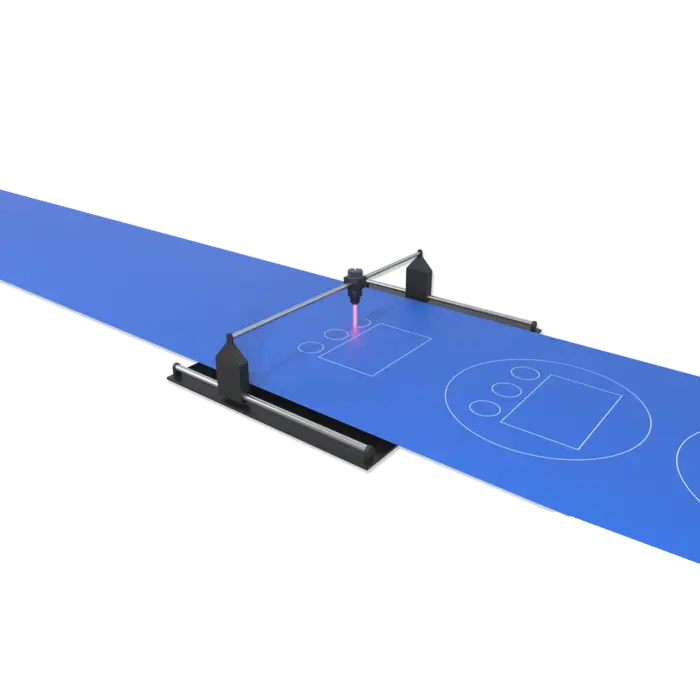

Laser cutting of tapes enables tool-free processing of self-adhesive materials with fine contours and without mechanical stress. Krückemeyer provides customized laser-cut parts for technical tapes and films to customer specifications.
Klebeband lasern individuell
| Laser area<\/td> | 2,400 × 3,000 mm<\/span><\/td><\/tr>| Laser tolerances<\/td> | ±0.1 mm<\/span><\/td><\/tr> | Material thickness<\/td> | |
Technique<\/strong><\/td>| Layer-by-layer material removal<\/td><\/tr> | Feature I<\/strong><\/td> | Different shapes of various layers<\/td><\/tr> | Feature II<\/strong><\/td> | Internal perforations<\/td><\/tr> | Feature III<\/strong><\/td> | |
Technique<\/strong><\/td>| Perforation of the backing for manual detachment<\/td><\/tr> | Feature<\/strong><\/td> | |
Technique<\/strong><\/td>| Predetermined break points in the material or substrate<\/td><\/tr> | Holes<\/strong><\/td> | Custom diameters available<\/td><\/tr> | Perforation Substrate<\/strong><\/td> | Tear-off aids<\/td><\/tr> | Perforation Material<\/strong><\/td> | Detachment of individual sections<\/td><\/tr> | Feature<\/strong><\/td> | |
| Technical Films | Film | Fabric | Foam | Paper |
| Adhesive Tape | Single- and double-sided adhesive |
| Foam | PU | PE | EPDM |
| Various | All cuttable and wrapable materials |
| Adhesive Films | Transfer Tapes |
In general, almost all adhesive tapes can be processed by laser – except PVC film tapes.
| Shapes | All 2D shapes |
| Strips | Custom dimensions |
| Dots | Custom diameters |
| Pads & Sheets | Custom dimensions |
When laser-processing tapes, you receive customized configurations on the carrier material—precisely matched to your application and your processing steps.
Häufige Fragen zum Klebeband lasern
With the laser cutting of adhesive tape, self-adhesive materials are cut contour-accurately using a laser beam — without any mechanical punching tool.
The process is particularly suitable when:
- Very delicate or complex geometries are required
- Frequent design changes are planned
- No tooling costs are required
- Small runs or variable quantities are produced
- The highest precision for fine contours is required
Laser cutting enables maximum flexibility while maintaining high cutting quality.
Depending on the material construction, different adhesive tape systems can be processed, for example:
- single- and double-sided tapes
- transfer tapes
- adhesive films with carrier film
- selected nonwoven carrier systems
- certain laminates or composite materials
Suitability depends on material thickness, carrier material, and thermal resistance.
The costs depend, among other things, on:
- Material type and thickness
- Contour complexity
- Quantity
- Desired delivery form
Since no tooling is required, traditional tooling costs are eliminated – but for very large series, an alternative process may be more economical.
There is usually no fixed minimum order quantity.
The laser process is especially economical for prototypes, small series, or frequently changing contours. For larger series, it will be evaluated individually to determine which process is optimal.
For an accurate quotation, the following information is helpful:
- Vector file (e.g., DXF, AI, or PDF)
- Material specification or technical requirements
- Material thickness
- Quantity
- Desired delivery form (loose, on roll, on sheet)
- Details on the intended use
The clearer the data, the faster and more efficiently the process can be carried out.
Yes, samples and prototypes can be produced on short notice.<\/p>
Especially in the development environment, laser processing provides a fast way to test geometries and functions under real-world conditions — ideal before serial release or tooling decisions.<\/p>
