Film Die-Cutting

Film punching enables precise contours in technical film materials – for visually clean and functionally reliable results. Krückemeyer offers this service based on your chosen materials.

Manufacturing capabilities Send inquiry

Folien stanzen individuell

Technik<\/strong><\/td>	Punching using a band-steel cutting tool<\/td><\/tr>
Arbeitsbreite<\/strong><\/td>	up to 600 mm<\/td><\/tr>
Dicke<\/strong><\/td>	up to 10 mm<\/td><\/tr>
Toleranzen<\/strong><\/td>

Process	Continuous punching using a punch-cylinder tool
Working width	up to 250 mm
Thickness	up to 2 mm
Tolerances	±0.5 mm

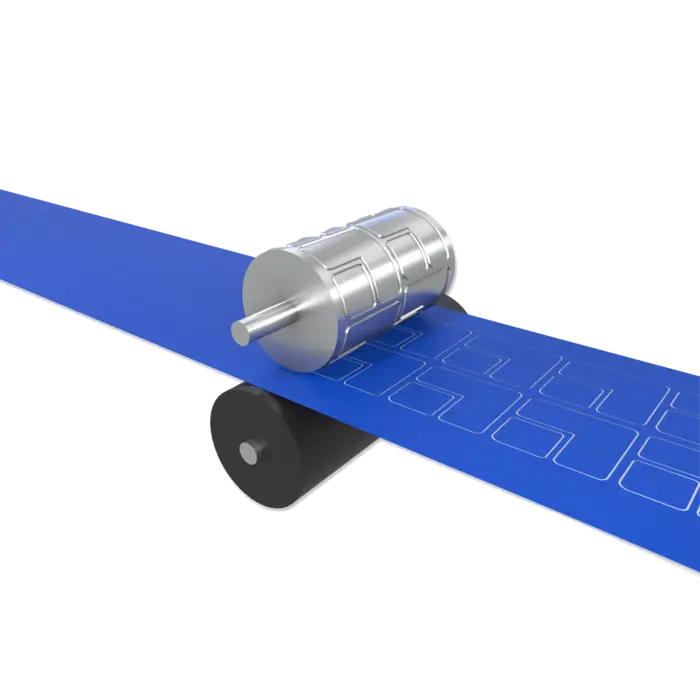

In classic rotary die-cutting, the film material is punched in the continuous process using a punch cylinder and tooling. This is ideal for producing large quantities quickly, economically, and with consistent precision.

Technology	Registration- and pinpoint-accurate punching with camera technology
Working width	up to 600 mm
Tolerances	±0.2 mm

Servo Rotary Punching enables point- and registration-accurate punching of films using camera technology. For films containing, for example, electronic components, punching is performed only at precisely defined locations so that the functional areas remain intact.

Technique<\/strong><\/td>	Material removal layer by layer<\/td><\/tr>
Feature I<\/strong><\/td>	Different shapes of various layers<\/td><\/tr>
Feature II<\/strong><\/td>	Internal cutouts customizable<\/td><\/tr>
Feature III<\/strong><\/td>

Technical Films<\/td>	Electronics \| Thermo \| and more<\/td><\/tr>
Protective Films<\/td>	Surface protection \| Product protection<\/td><\/tr>
Metal Foils<\/td>	Aluminum \| Copper \| Deposition coatings<\/td><\/tr>
Plastic Films<\/td>	PE \| PP \| PTFE \| PI \| PVC \| and more<\/td><\/tr>
Self-adhesive Materials<\/td>	Films pre-coated with adhesive<\/td><\/tr>
Non-adhesive<\/td>

Glue dots	Custom diameters
Adhesive tapes	Custom dimensions
Custom adhesive die-cut parts	All 2D shapes
Adhesive pads & Sheets	Custom dimensions
Carrier media	Roll stock & Sheet stock \| individual parts

We typically manufacture your die-cut parts on a silicone-based carrier material. This allows you to receive the parts either as roll stock, sheet stock, or individually – tailored to your process.

Häufige Fragen zum Folien stanzen

During foil punching, technical foils are formed to defined geometries with contour accuracy – precisely matched to the component, function, and assembly process.

The process is particularly suitable when:

Precise fits are required
Delicate inner contours or cutouts are required
Sealing, insulation, or protective functions are to be integrated
Automated application processes must be supported

Die-cut foils ensure reproducible quality and efficient downstream processing.

Nearly all commercially available technical films can be processed, including:

PET films (e.g., polyester films)
PVC, PP, or PE films
Functional and protective films
Insulation and spacer films
Self-adhesive films
Multilayer laminates

Additionally, material combinations are possible through laminating or by applying transfer adhesive layers.

Manufacturing is performed with tight tolerances and high repeatability.

Process capability and reproducible quality are documented through optical measurement technology (e.g., line-scan camera). Complex contours or even the smallest openings are feasible – depending on material type and thickness.

Depending on customer requirements, various delivery formats are possible:

Loose individual parts
On a roll (continuous or individually punched)
On sheets
Cross-wound reels
With release aid (finger lift)
With positioning aids
With modified protective cover (paper or film liner)
Multilayer composite solutions

The configuration is precisely tailored to the application process – manual, semi- or fully automatic.

The cost-effectiveness depends, among other things, on:

Material type and film thickness
Complexity of the die-cut contour
Tooling costs
Order quantity and call-off quantity
Additional processes such as laminating or coating
Desired packaging and delivery form

Through modular manufacturing processes, both prototypes and series production can be economically realized.

The following details are helpful for an accurate calculation:

Technical drawing (including tolerances)
Material specification or functional requirements
Dimensions and film thickness
Self-adhesive or non-self-adhesive
Preferred delivery form
Project or annual quantity

The more detailed the information, the more tailored the solution can be.

Samples and pre-production runs can be produced on short notice, provided the desired materials are in stock or can be sourced quickly.

Thanks to flexible process chains and in-house converting, rapid development cycles are possible – ideal for testing, validation, or production ramp-ups.
