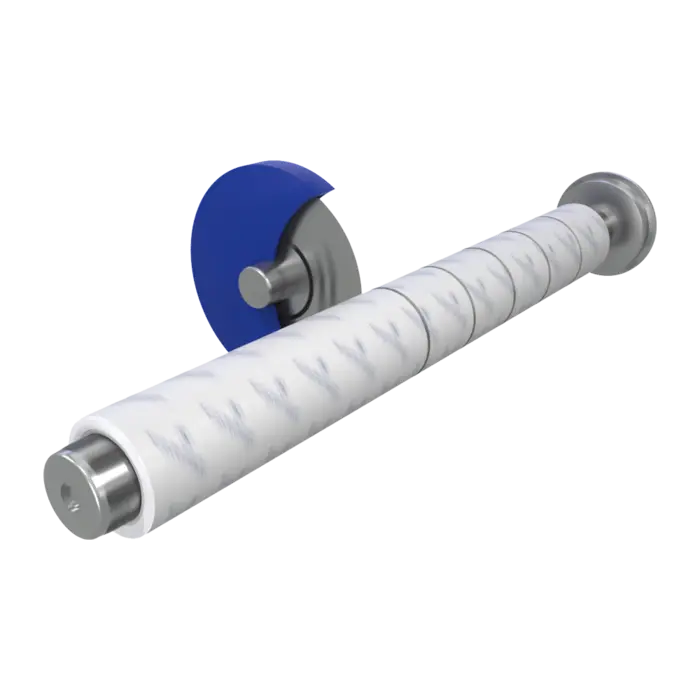

Film cutting

Film cutting enables precise, custom-sized cuts in variable widths, ideal for protective or functional applications. Krückemeyer offers precise rotary cutting for many technical film materials, self-adhesive or non-adhesive.

Manufacturing capabilities Send inquiry

Folien schneiden individuell

Cut widths	3 mm to 1,600 mm (material-dependent)
Tolerances	approx. 0.5 mm (material-dependent)

We cut films as roll stock or wound stock to your desired widths – tailored precisely to your application.

Wrapping + Cutting	approx. 1 - 1,500 m
Cut reels	up to 1,500 m
Cross-wound reels	up to 30,000 m

We manufacture film rolls in custom run lengths – either as standard roll stock or as cross-wound reels with kilometer-long windings.

Saw blade widths

approx. 10 – 1,600 mm

We also cut tougher protective films, if required, using sawing technology – in custom widths, precisely tailored to your application.

Cutting widths<\/strong><\/td>	up to 1,600 mm<\/span><\/td><\/tr>
Cut lengths<\/strong><\/td>	up to 1,500 m<\/td><\/tr>
Core diameter<\/strong><\/td>

Tape widths	2-9 mm
Tape lengths	up to about 30,000 m
Reel diameter	up to 500 mm
Reel width	up to 500 mm
Core diameter	30 mm \/ 3" \/ 6"

For continuous use, customized film materials can also be wound as narrow tapes crosswise—supplied in kilometer-long lengths, precisely to your needs.

Technical films<\/strong><\/td>	Electronics \| Thermal \| and more<\/td><\/tr>
Protective films<\/strong><\/td>	Surface protection \| Product protection<\/td><\/tr>
Metal foils<\/strong><\/td>	Aluminium \| Copper \| Vapor-deposited coatings<\/td><\/tr>
Plastic films<\/strong><\/td>	PE \| PP \| PTFE \| PI \| PVC \| and more<\/td><\/tr>
Self-adhesive materials<\/strong><\/td>	Self-adhesive coated films<\/td><\/tr>
Non-adhesive<\/strong><\/td>

Roll stock<\/td>	(Self-adhesive) films in standard sizes and more<\/td><\/tr>
Sheet stock<\/td>	Custom cuts<\/td><\/tr>
Cross-wound rolls<\/td>

Häufige Fragen zum Folien schneiden

With film cutting, wide film master rolls are precisely converted to individual desired widths. The aim is to tailor the material exactly to the component, the production process, and downstream processing.

The process is especially worthwhile when:

special widths are required for manufacturing processes
automatic feed systems are used
material should be used economically
manual trimming cuts are avoided
process safety and repeatability are required

Individually cut film rolls optimize handling, efficiency, and assembly processes.

As a rule, a wide range of technical films in roll stock can be processed, e.g.:

PET-, PP-, PE- or PVC films
protective and surface films
self-adhesive films
functional, insulating, and spacer films
multilayer laminates or composite materials

Rewinding onto standard core diameters as well as custom roll lengths are possible.

The costs are mainly determined by:

Film type and thickness
Target width and number of cuts per roll
Roll length and desired core diameter
Quantity / lot size or annual demand
Additional processing such as rewinding, special packaging, or special versions

The better the material utilization and the more predictable the demand, the more economical it usually is.

There is no fixed minimum order quantity that applies in every case. It depends on material, format and feasibility. Production is often based on master rolls – smaller orders can also be implemented depending on the material and the effort involved.

To speed up the quote, the following information is helpful:

Material (designation or desired properties)
desired roll width
roll length
core diameter
quantity (units or annual demand)
Application/processing (manual, semi-automatic, or fully automatic)

Yes – sample cuts are possible. This allows practical evaluation of width, handling, and process integration before production release (e.g., for application, downstream processing, or machine deployment).
