Film cutting
Film cutting delivers precisely tailored formats for further processing or direct application – also with protective films or liners. Krückemeyer produces custom cuts for a wide range of film types and thicknesses.
Folienzuschnitt individuell
| Cut widths | 3 mm to 1,600 mm (material dependent) |
| Tolerances | approx. 0.5 mm (material dependent) |
We manufacture your film cuts as roll stock or wound stock in the widths you require — precisely tailored to your application.
| Wrapping + Cutting | approx. 1 - 1,500 m |
| Cut Reels | up to 1,500 m |
| Cross-wound Reels | up to 30,000 m |
Our film cuts deliver customized running lengths – as standard roll stock or as cross-wound reels with very large, even kilometer-long windings.

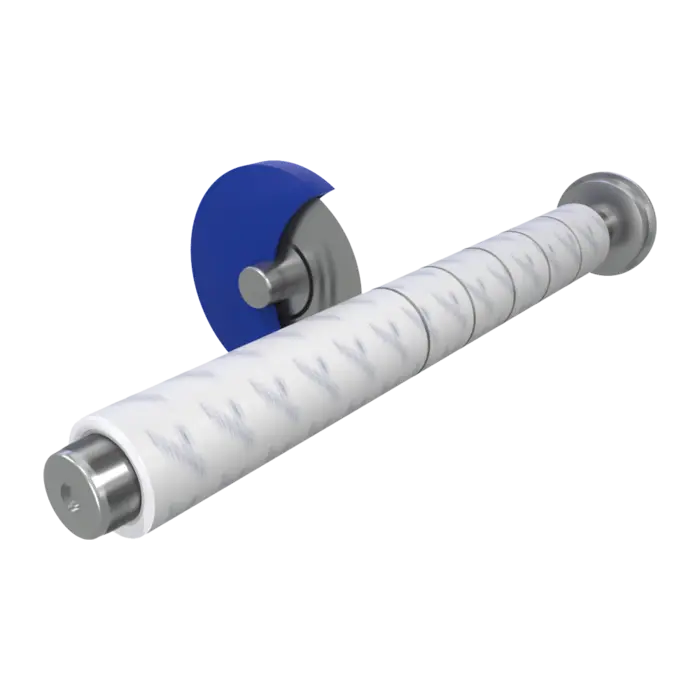

| Saw blade widths | approximately 10 to 1,600 mm |
We can also, if required, professionally convert tougher protective films using sawing technology into cut-to-size film – in custom widths, precisely matched to your application.
Cut widths<\/strong><\/td>| up to 1,600 mm<\/span><\/td><\/tr> | Cut lengths<\/strong><\/td> | up to 1,500 m<\/td><\/tr> | Core diameter<\/strong><\/td> | |
| Tape widths<\/td> | 2-9 mm<\/td><\/tr> |
| Tape lengths<\/td> | up to approx. 30,000 m<\/td><\/tr> |
| Reel diameter<\/td> | up to 500 mm<\/td><\/tr> |
| Reel width<\/td> | up to 500 mm<\/td><\/tr> |
| Core diameter<\/td> | 30 mm \/ 3" \/ 6"<\/td><\/tr><\/tbody><\/table><\/figure> For continuous use, we also provide the |
| Technical Films<\/td> | Electronics | Thermo | and more.<\/td><\/tr> |
| Protective Films<\/td> | Surface protection | Product protection<\/td><\/tr> |
| Metal Foils<\/td> | Aluminium | Copper | Vapor-deposited Coatings<\/td><\/tr> |
| Plastic Films<\/td> | PE | PP | PTFE | PI | PVC | and more<\/td><\/tr> |
| Self-Adhesive Materials<\/td> | Self-adhesive-coated films<\/td><\/tr> |
| Non-Adhesive<\/td> | Films without adhesive layer<\/td><\/tr><\/tbody><\/table><\/figure> We offer Film Slitting |

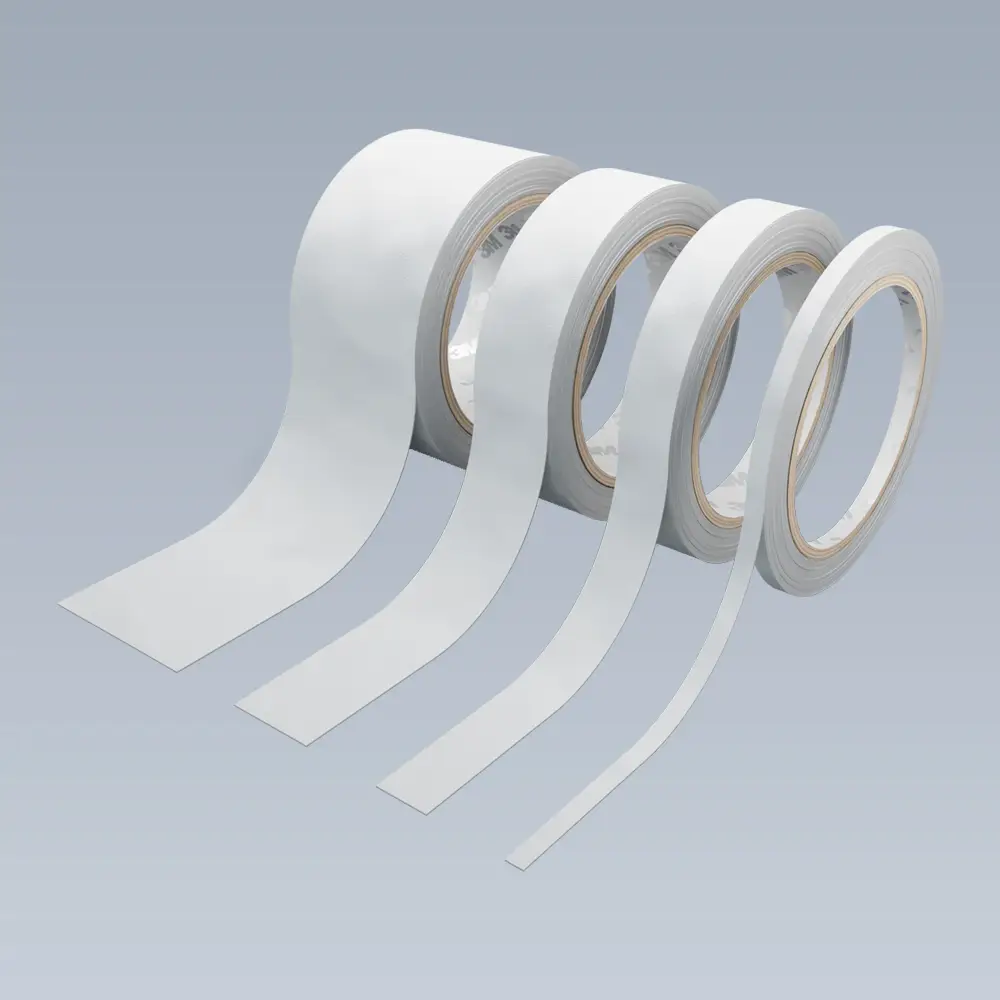

| Roll stock | (Self-adhesive) films in standard sizes and more |
| Sheet stock | Custom cuts |
| Cross-wound reels | Long tapes up to 30,000 m in length |
Configured for your applications and requirements, we create film cuts in customized configurations – precisely to size and optimized for your downstream processing.
Häufige Fragen zum Folienzuschnitt
With film cutting, technical films are not supplied on a roll, but as individual cuts in defined lengths or formats.
This is particularly useful when:
- precise piece dimensions are required
- sheet, panel, or individual-part formats are processed
- films are laid or positioned manually
- no roll usage is planned in the production process
The cutting simplifies handling, storage, and direct further processing.
As a rule, nearly all technical films can be customized, for example:
- PET, PP, PE, or PVC films
- protective and masking films
- self-adhesive films
- insulation or spacer films
- multilayer laminate or composite films
Individual material combinations or laminated variants are also possible.
Pricing is mainly determined by:
- film type and material thickness
- cut size (width × length)
- tolerance requirements
- quantity or annual demand
- additional services such as packaging or labeling
Larger production runs and standardized formats generally improve cost efficiency.
The minimum quantity depends on the material, format, and effort.
Depending on the film type, smaller runs or project-specific quantities can also be produced – especially for development or testing purposes.
For a quick and precise calculation, the following are helpful:
- Material designation or desired properties
- exact cut dimensions (width × length)
- desired tolerances
- quantity or annual volume
- information on further processing
These details enable us to tailor the optimal solution.
Yes, sample formats can be provided.
This allows handling, dimensional accuracy and process integration to be checked before production starts – ideal for validation and approval.
